Changing the cover

1

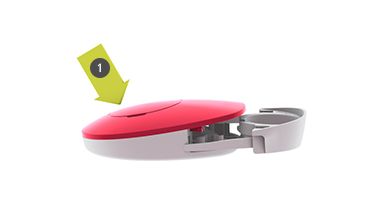

Remove the battery. Place SAMBA on an even surface (e.g. table) and put one finger on top 1.

2

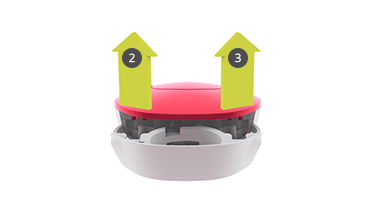

First, lift one side of the cover 2, then lift the other side 3.

3

Remove the cover completely and place the new cover on SAMBA. Press it down, firstly on the rear side 4, then on the front side 5. Insert the battery.

4

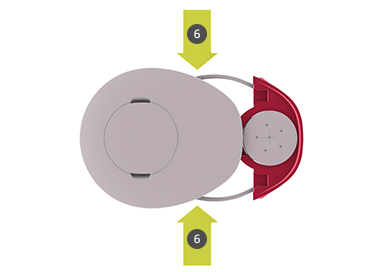

Press the sides just below the cover and behind the opened battery compartment together 6 to ensure that the cover is in the correct position. Close the battery compartment.

Refer to your user manual for more information.
