SONNET 3
CI and EAS Audio Processor
These support guides will help you handle and care for the SONNET 3 & SONNET 3 EAS Audio Processor.
Assembling SONNET 3 With Rechargeable Batteries

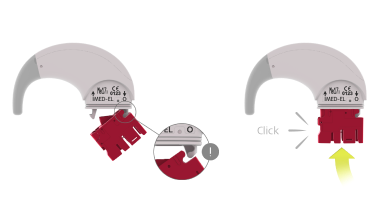

Attach the rechargeable battery adapter to the control unit.
Note the mechanism that secures the rechargeable battery adapter to the control unit.

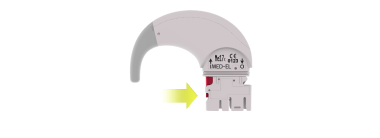

To remove, press the tip of the release lever.

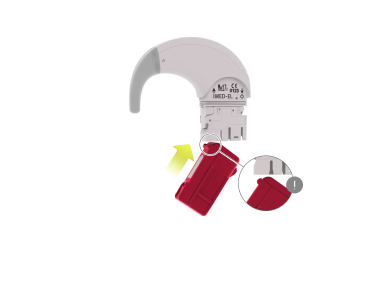

Insert the rechargeable battery at an angle. The side with the higher lip should be facing towards the earhook.

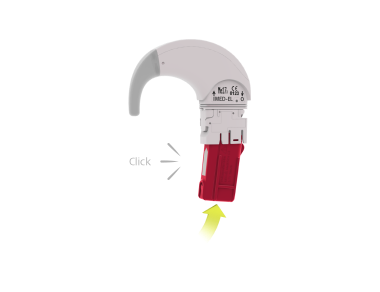

Gently press the rechargeable battery back into the adapter until it clicks into place.
To remove the rechargeable battery, simply reverse steps 3 and 2. The rechargeable battery adapter does not need to be removed when changing the rechargeable battery.

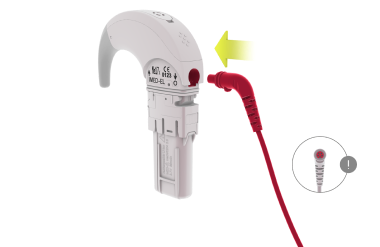

Plug the coil cable into the control unit.
Note the correct orientation of the coil cable socket.

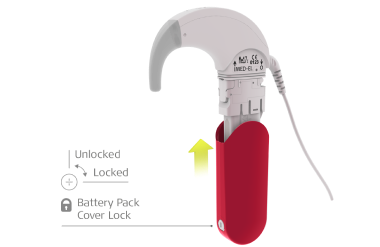

Make sure that the battery pack cover lock is in the unlocked position. Slide the battery pack cover over the rechargeable battery adapter. SONNET 3 is now switched on.
Be careful not to use too much force when turning the lock.

Refer to your user manual for more information.
