SONNET 3
CI and EAS Audio Processor

These support guides will help you handle and care for the SONNET 3 & SONNET 3 EAS Audio Processor.

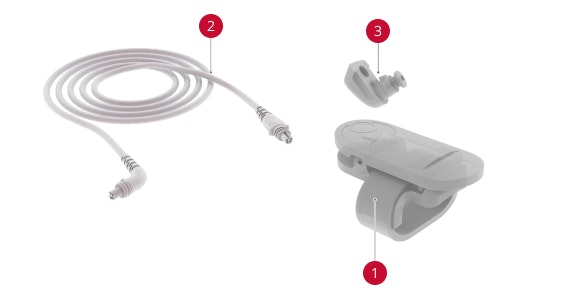

BabyWear

1

Attachment Clip

2

28cm Coil Cable

3

Earhook Cover

1

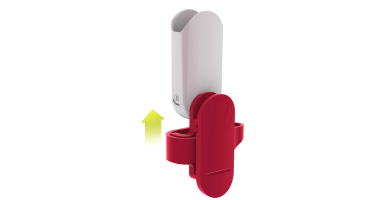

Slide the silicone ring of the attachment clip over the battery pack cover with the small cable ring to the back.

2

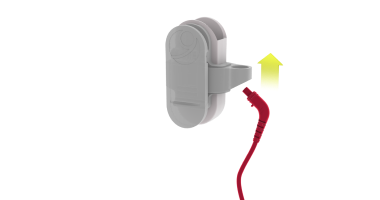

Slide the end of the 28cm coil cable through the ring in the attachment clip.

3

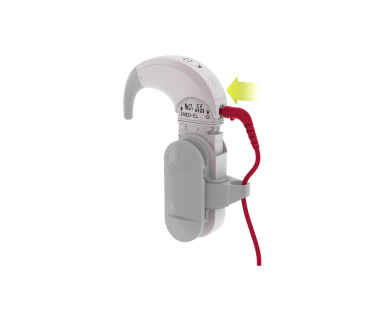

Plug the coil cable into SONNET 3.

!

All steps must be followed to ensure BabyWear is tamperproof.

4

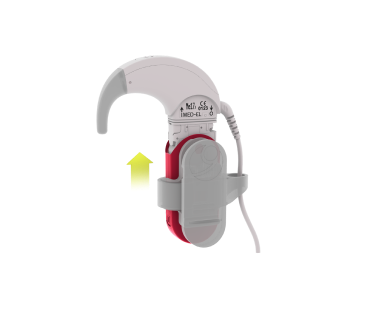

Slide the battery pack cover over the battery pack. Lock into place by turning the lock with the plastic screwdriver.

5

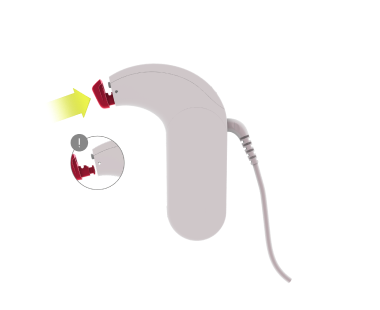

Replace the earhook with the earhook cover (see Changing the Earhook).

Book-Icon

Refer to your user manual for more information.
